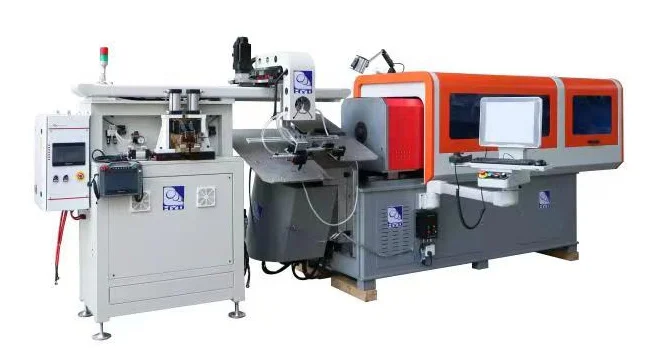

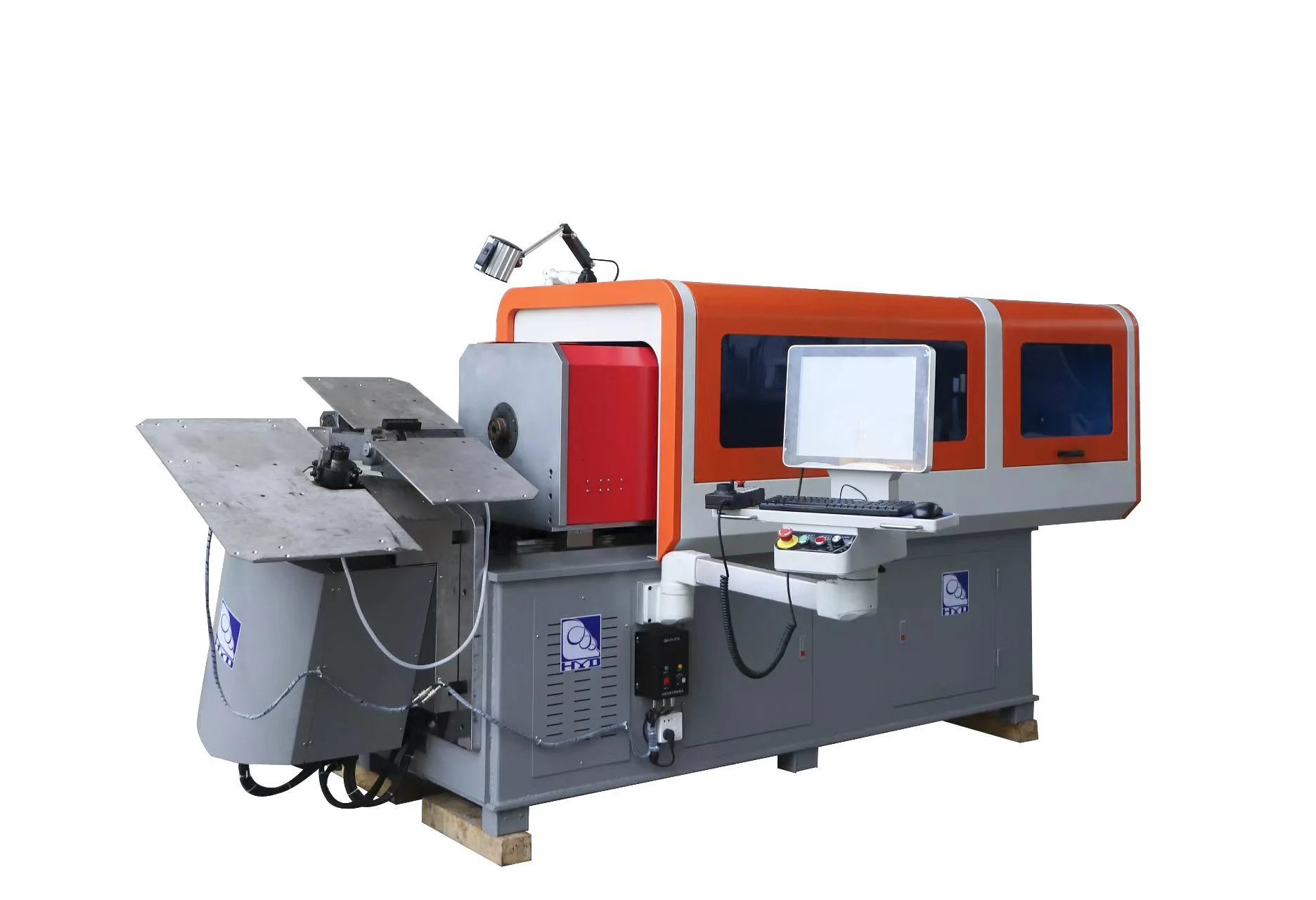

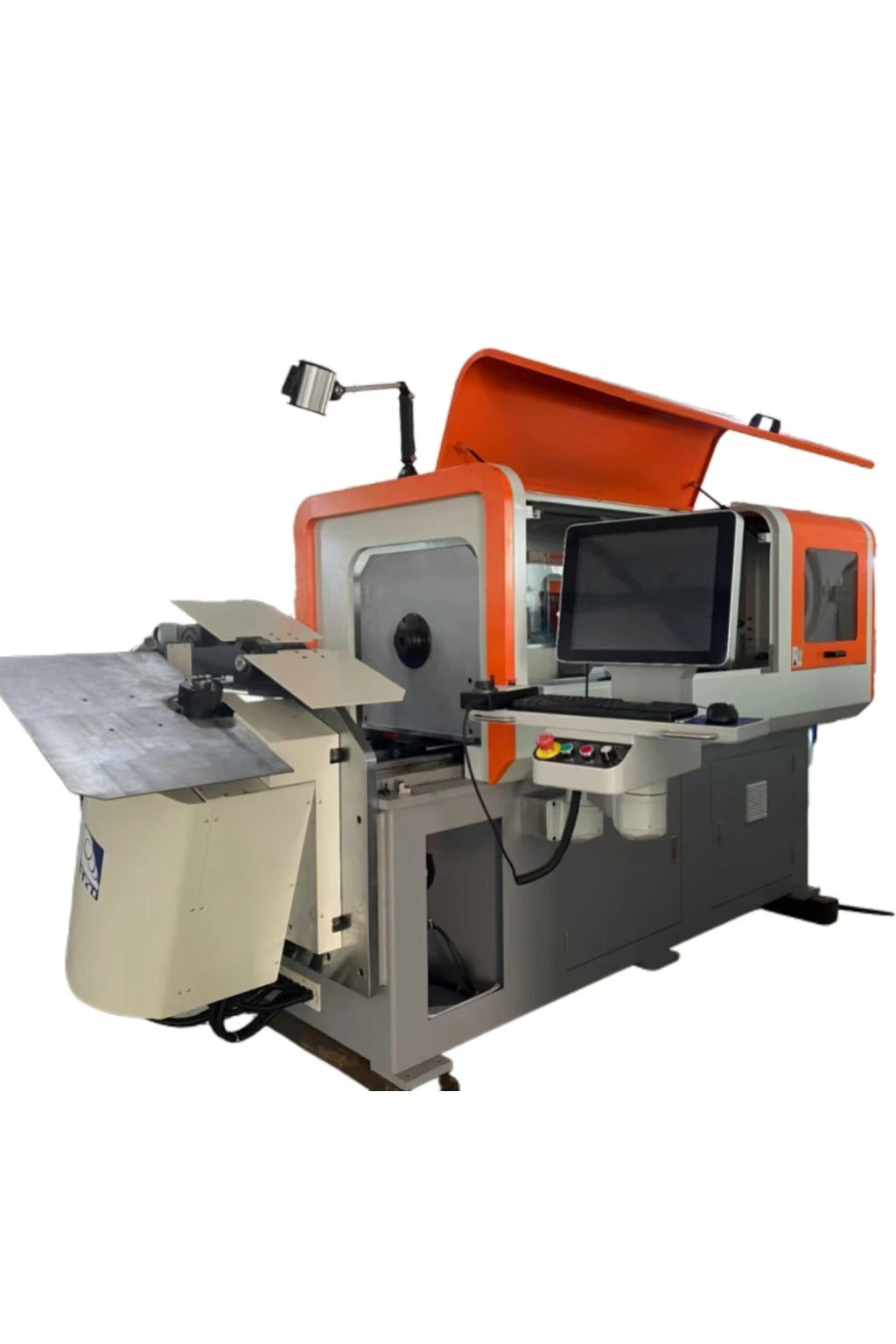

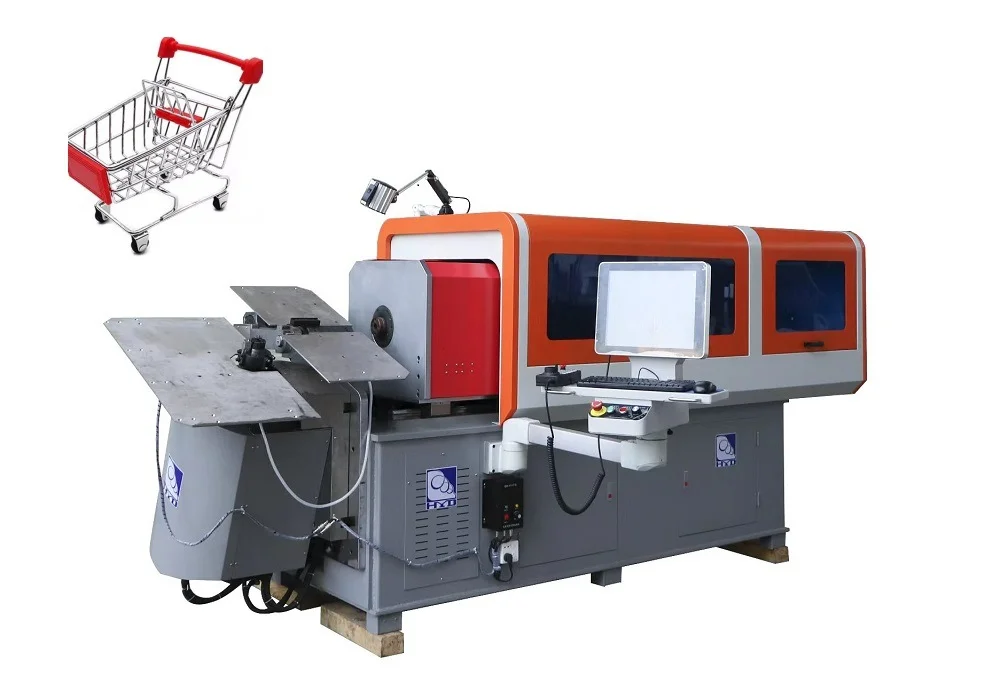

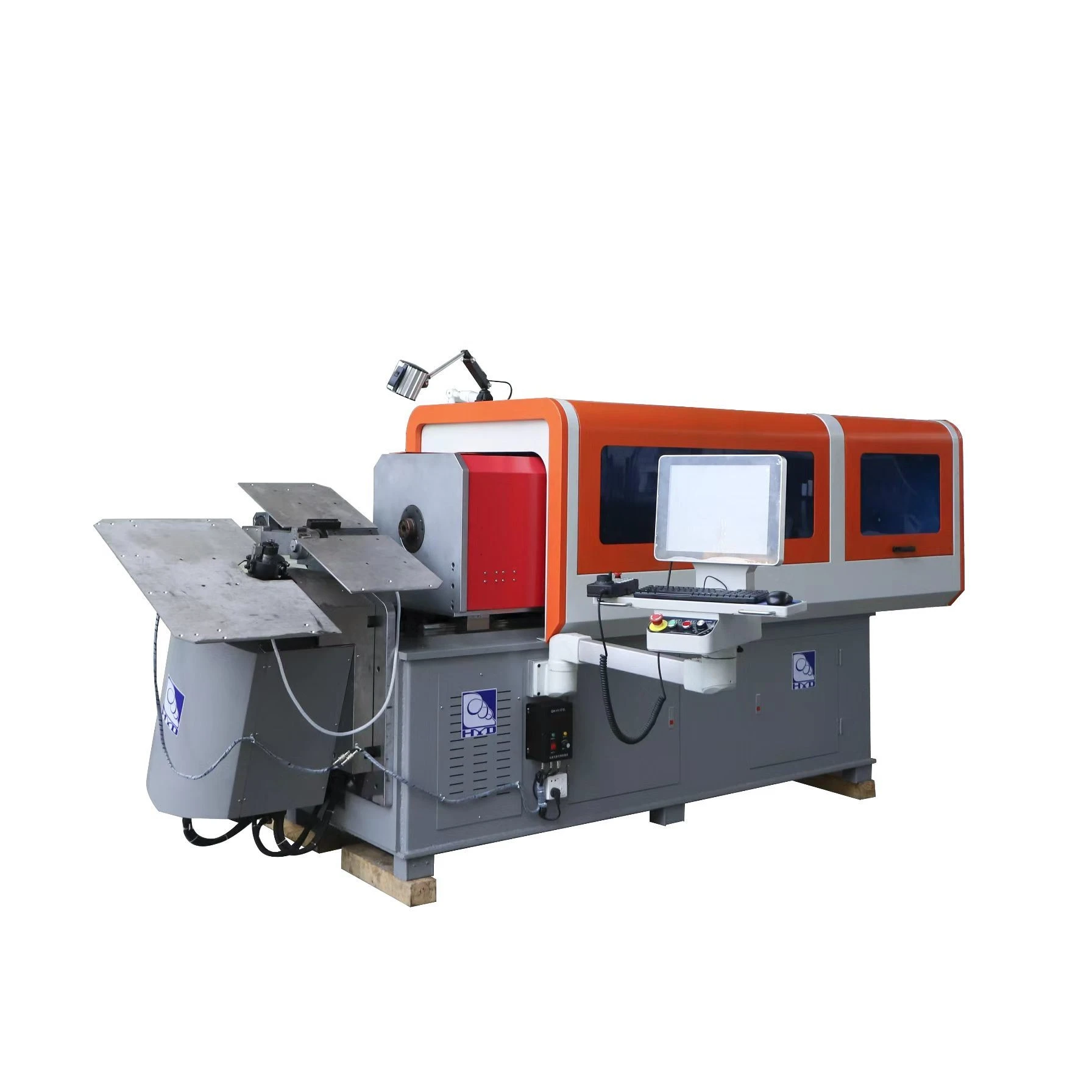

Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing

Place of Origin : Guangdong, China

Brand Name : HYD

MOQ : 1

Weight : 3600 kg

Voltage : 380 V

Power : 20.8-26.5 kW

Wire Size : 3.0-10.0mm TS≤500N

Servo Motors : 8-10 axes

Control System : Dedicated CNC Computer

Max Wire Feed : 10000.0 mm

Min Wire Feed : 0.01 mm

Max Wire Speed : >70 m/min

Air Pressure : 5-6 KG/CM²

Probe Count : 2

Machine Size : L3800*W1100*H1680 MM

Motor Brand : Sanyo/Yaskawa

Power Supply : 3phase, 380V

Wire Feed Length : unlimited

Contact Now

Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Products Description
HY D-WR10A- 100/80
Rotary wire type 3D wire bendingmachine
Technical specification
Model
HYD-WR9A-100
HYD-WR10A-100
HYD-WR10A-80
Wire Size
φ3.0-φ10.0mmTS≤500N
φ3.0-φ10.0mm TS≤500N
φ2.0-φ8.0mm TS≤500N
Servo Motors
9 axes
10 axes
10 axes
Control System
Dedicated CNC Computer
Dedicated CNC Computer
Dedicated CNC Computer
Moter Brand
Sanyo/Yaskawa
Sanyo/Yaskawa
Sanyo/Yaskawa
MaxWire Feed
10000.0mm
10000.0mm
10000.0mm
MinWire Feed
0.01mm
0.01mm
0.01mm
MaxWire Speed
>70m/min
>70m/min
>60m/min
Wire Feed Length
unlimited
unlimited
unlimited
Power
3phase,380V
3phase,380V
3phase,380V
Air Pressure
5-6KG/CM²
5-6KG/CM²
5-6KG/CM²
Probe
2
2
2
Machine Size
L3800*W1100*H1680MM
L3800*W1100*H1680MM
L3800*W1100*H1680MM
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Application Scenario
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Product Categories
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Why Choose Us
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
About US
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Transportation
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
FAQ
Rotary Wire Type 3D Wire Bending Machine with 8-10axes Servo Motors and 3.0-10.0mm Wire Size for Industrial Wire Processing
Q1: Can you send me the catalogue? A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need. Q2: Do you accept OEM? A2: We can produce any of your requested designs. Q3: Can it be configured with something else? A3: Yes, We can customize the machine according to your product requirements Q4: Are you a factory? A4: Sure. We are factory direct sales; welcome to visit our factory. Q5: What information will be helpful in getting an accurate quotation from us? A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc Q6: What is the power supply of the machine? A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement. Q7: What is the payment term? A7: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term. Q8: What is the delivery time? A8: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days. Q9: What is the guarantee period of the machine? A9: The guarantee period is one year from the date of B/L. Q10: What is the MOQ? A10: One set. We will make the machine suitable for you according to your needs Q11:How can I contact you to place an order? A11:You can contact us by email or WhatsApp, or by whatever method you prefer. Q12:What types of products are there? A12:We have camless spring machines, cam spring machines, compression spring machines, wire bending machines, rotary head machines, etc. Q13:Do you have CE certification? A13:Yes, we have CE certificate. Our machines are of good quality and high precision. Q14:What motor do you use? A14:We use Japanese Sanyo servo motors.Can also be customized according to your needs. Q15:What terms do you accept? A15:We accept FOB, CIF, EXW, etc. Q16:Do you provide training? A16:Yes, our engineers can provide machine training services, you can come to our factory to learn, or we can also arrange online guidance. Q17:Do you offer the service of purchasing accessories separately? A17:Yes, you can ask us about accessories and provide some corresponding sizes and information. Q18:What is your packaging like? A18:We use standard seaworthy wooden boxs to pack our goods. Q19:How to operate the machine? A19:Our machines are controlled by computer systems. We will provide user manuals for operating the computer systems. If you have any questions, we will also arrange for engineers to answer them. Q20:Can your computer system switch the language? A20:Yes, usually we will set the system to English mode before shipping.
