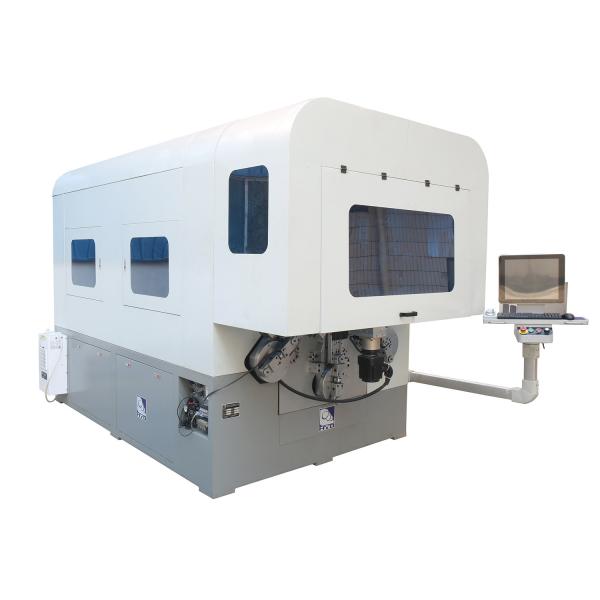

12 Axes CNC Spring Making Machine D2 Guide Rail Camless Wire Rotating Machine
Introduction
This camless spring machine is a multi-function wire rotary forming machine controlled by 12 servo motor shafts, guide rails and CNC. It mainly handles 2-6mm high carbon steel wire or 3-8mm low carbon steel wire. Mainly processing high-carbon steel wire, piano steel wire, stainless steel wire, copper wire, aluminum wire, low-carbon steel wire, iron wire and other wire materials, which can be used to make complex tension springs, torsion springs, clockwork springs, special-shaped springs and Various special shapes of wire molding. The 12-axis is mainly 8 arm claws, cores, wire feed, wire transfer, and crimping. Servo/hydraulic scissors, multiple crimps, or additional bending devices are also optional.
Adavantage
1. Rotary molding machine without cam and rocker arm design line (the speed of adjustment is more than 50% faster than that of cam machines, and the production speed is fast, powerful, precise and stable in operation).
2. It is more convenient and quicker to make products than the 8-jaw machine. It can produce difficult springs and is suitable for spring forming with many styles and small quantities.
3. The guide rail design arm is convenient for cleaning and maintenance to ensure accuracy and strength. It can process 6mm carbon steel wire and 5mm oil quenched steel wire for a long time. It is a good helper for the modern spring industry.
4. There is no collision, less heat generation, and the composite tool cooperates to complete all the processes, and the tool loss is low.
5. CNC intelligent module, automatic detection and alarm.
6. Computer window operation, Chinese and English display, easy to learn and use.
7. It is very suitable for high-precision spring products required by various industries such as automobiles, motorcycles, bicycles, machinery, household appliances, and home appliances, entertainment and fitness equipment.
Data Sheet
| Twelve Axes multi-functional spring machine |
| Model | HYD-60T-12A |
| Axis Count | 12 axis |
| Wire Size Range | low carbon steel:3-8mm |
| high-carbon steel:2-6mm |
| Lead rail | distance of 130mm |
| Wire feeding count | 4 pairs |
| Max Feeding speed | 80m/min |
| Maximum error | ±0.1(length) |
| Control system+decoiler | 1 set |
| Servo motor power | 49.7KW |
| Reducer | 11pcs |
| Minimum length of angel | 4 times wire diameter |
| Machine size | 2600*1400*2050mm |
| Machine weight | 4500kg |
Packing
Company Introduction
HYD Spring Machine Factory
★★★SPRING MACHINE, WIRE FORMING MACHINE PRODUCER★★★
As the professional spring machine producer in China, HYD has succeeded in
cam spring machine, camless spring former, camless wire rotary machine, wire
bending machine, spring coiler, wire cutting machine, screw sleeve machine
and wire forming industries. In other words, we help customers supplying
cost-effective springs solutions.
★AFTER-SALE SERVICE★
HYD serve lifetime maintenance to all customers. ( 1 year warranty, spare parts
free if machine is natural failure)
Training free 1 week in our factory or paid field training.
Online support/ video technical support.
★VALUE-ADDED SERVICES★
As you may know, your friends use our machines. With more than 25 years
experience, we can design and develop new machines under spring required
to lower cost.
We will commissioning machine well and make spring samples too.
